Seamless MultiCAD Interoperability with Aras–Elysium Integration
Accelerate your Model-Based Engineering (MBE) workflows with powerful CAD validation, 3DPDF conversion, and MultiCAD interoperability—all delivered natively inside Aras Innovator and designed to coexist with downstream PLM ecosystems such as 3DEXPERIENCE for frictionless, cross-platform collaboration.
Powerful Features of Aras–Elysium Integration
3DPDF Conversion
Convert CAD models like SolidWorks into interactive 3DPDFs—managed in Aras Innovator and easy to share with 3DEXPERIENCE teams.
CAD Model Comparison
Automatically validate and compare CAD models to detect differences. Generate detailed comparison reports for improved accuracy and decision-making.
Multi-CAD Interoperability
Work seamlessly across leading CAD systems including SolidWorks, NX, Creo, STEP, and more—ensuring end-to-end digital continuity.

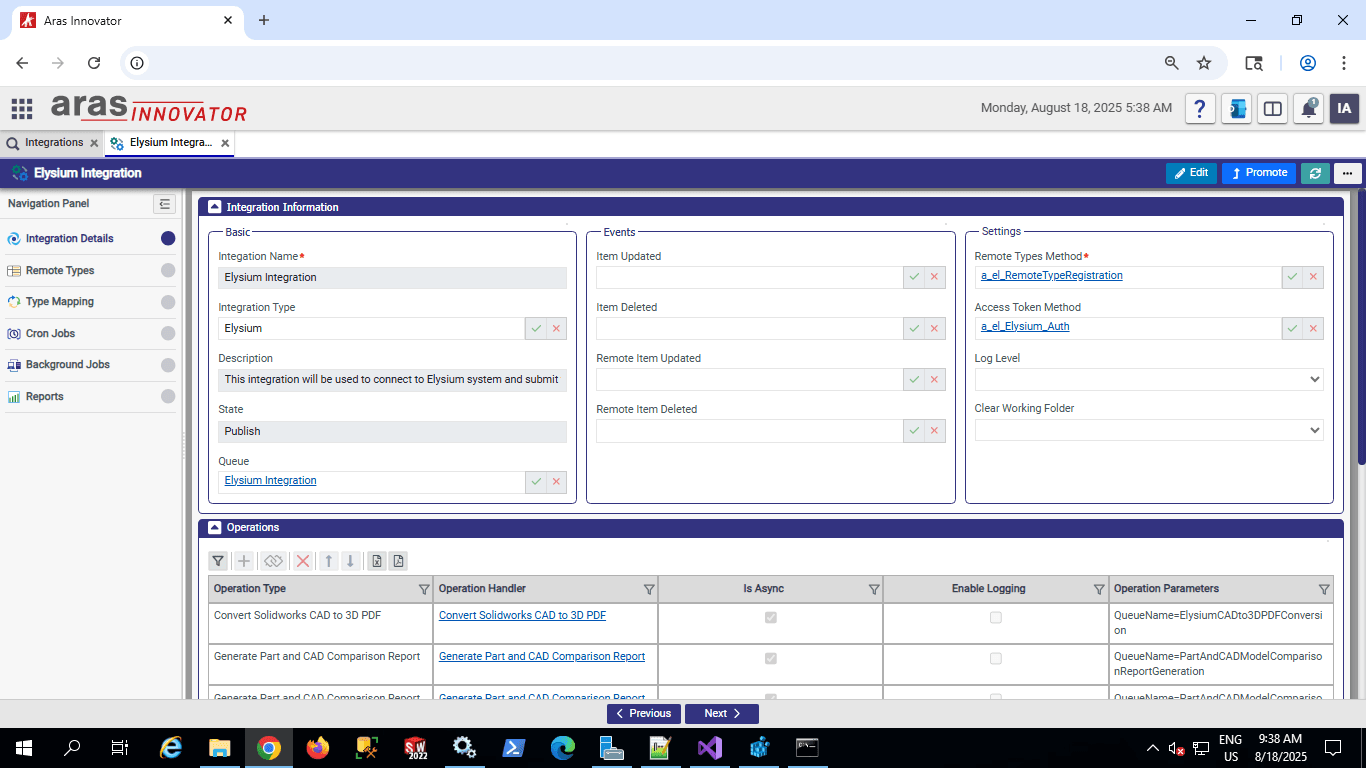

Integration Dashboard
- Centralized Admin Configuration: Easily configure integration workflows with dedicated queues, endpoint details, and secure credentials—managed via a streamlined admin UI in Aras Innovator and adaptable to cross-platform scenarios involving 3DEXPERIENCE.
- Asynchronous Processing for Efficiency: Run all integration operations in the background with asynchronous processing, ensuring smooth performance without disrupting critical workflows.

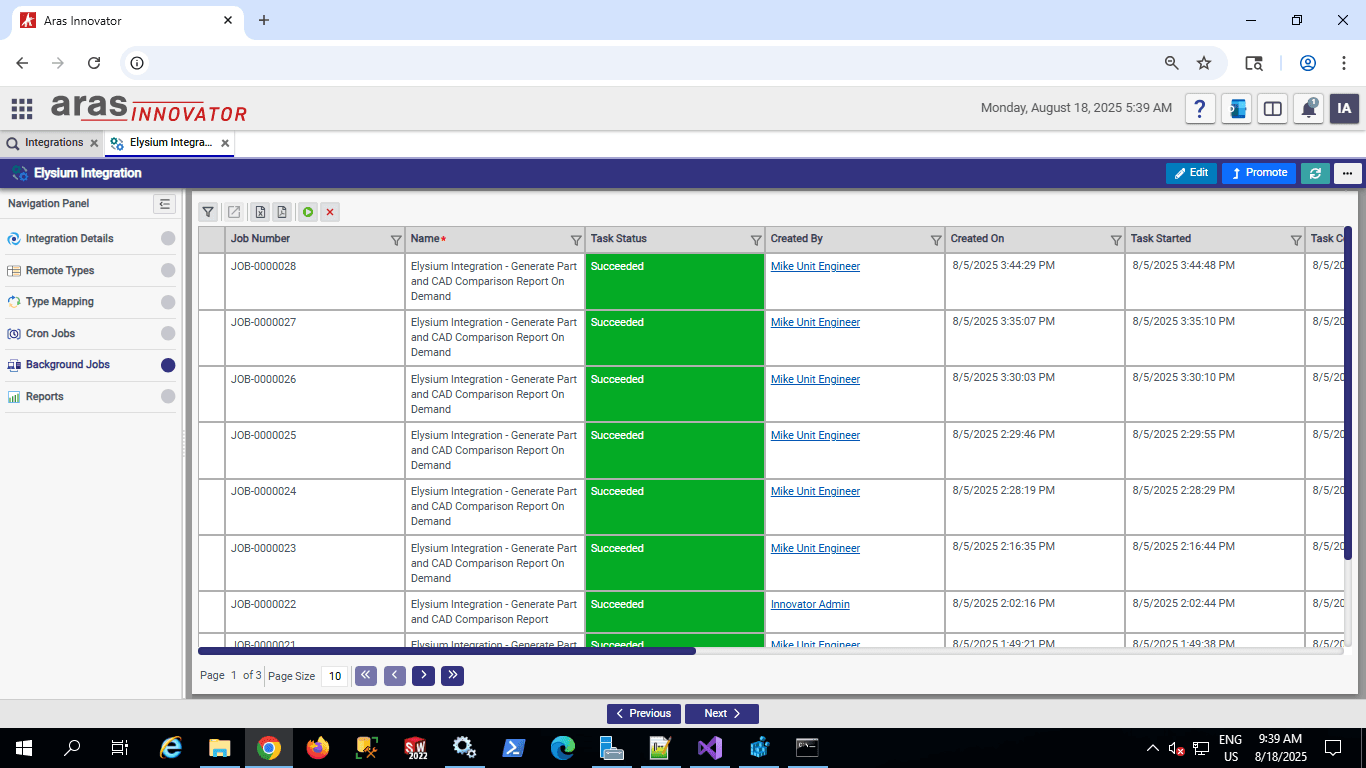

- Real-Time Job Monitoring: Access a comprehensive dashboard to track job statuses, review completed processes, and identify potential bottlenecks instantly.
- Automated Error Notifications: Stay informed with automatic alerts - any failed jobs trigger email notifications to the responsible users, enabling faster resolution and accountability.

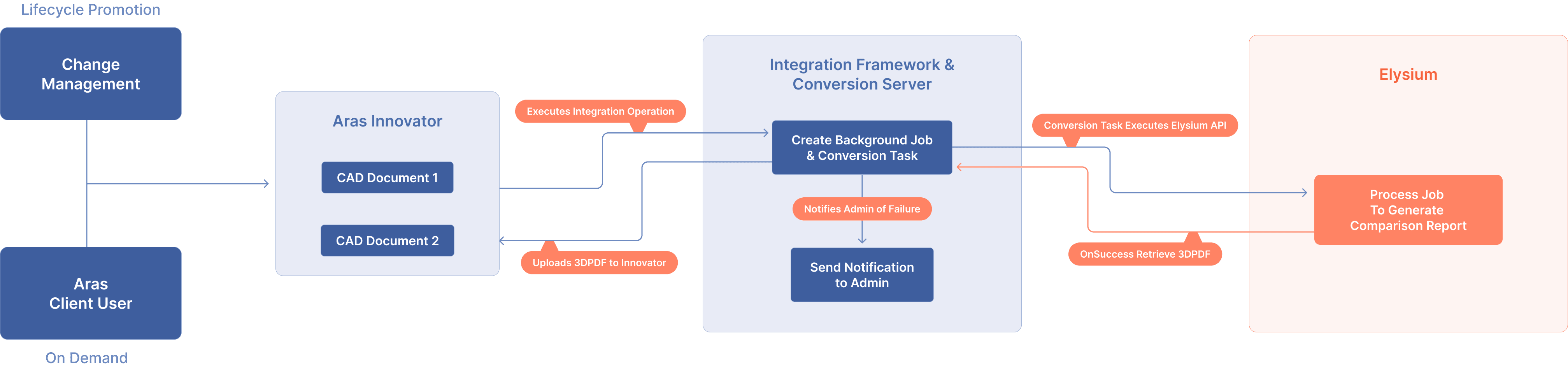

CAD Models Comparison
Version-to-Version Validation
Compare CAD model versions for precise revision control in Aras Innovator, aligned with 3DEXPERIENCE governance.
Event-Driven Triggers
Integrate comparisons into change management workflows—new CAD revisions are instantly checked against previous versions.
On-Demand Comparison
Run manual comparisons between CAD models anytime, giving engineers full control over validation when needed.

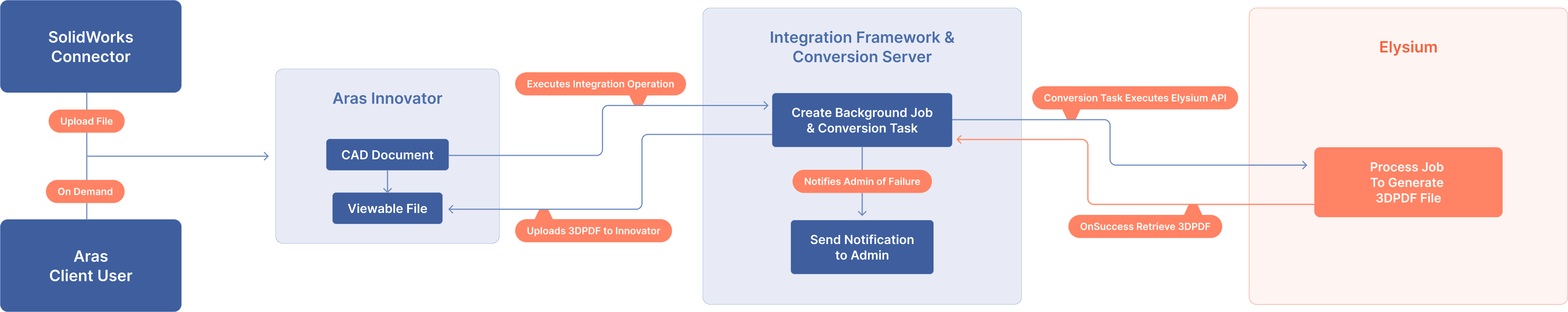

CAD Model to 3DPDF Conversion
- Flexible Triggers: Conversion can be initiated automatically on file upload or triggered on demand, giving teams control over when 3DPDFs are generated.
- Automated Background Processing: Once a CAD file’s native_file property changes, the integration framework creates a background job that submits the task to Elysium without user intervention.
- Seamless 3DPDF Attachment: The generated interactive 3DPDF is automatically linked back to the viewable_file property on the CAD document, ensuring quick access within Aras Innovator.
Support for Products and Connectors by Prorigo Software
A dedicated team of support engineers is available to answer your queries, and provide help in resolution of any incidents reported, related to products and connectors developed by Prorigo.
